Direct visualization of concerted proton tunnelling in a water nanocluster

Journal name:
Nature Physics
Volume:
11,
Pages:
235–239
Year published:
DOI:
doi:10.1038/nphys3225
Received
Accepted
Published online

Proton transfer through hydrogen bonds plays a fundamental role in many physical, chemical and biological processes1, 2, 3, 4, 5. Proton dynamics is susceptible to quantum tunnelling, which typically involves many hydrogen bonds simultaneously, leading to correlated many-body tunnelling6, 7, 8, 9. In contrast to the well-studied incoherent single-particle tunnelling, our understanding of many-body tunnelling is still in its infancy. Here we report the real-space observation of concerted proton tunnelling in a cyclic water tetramer using a cryogenic scanning tunnelling microscope. This is achieved by monitoring the reversible interconversion of the hydrogen-bonding chirality of the water tetramer with a chlorine-terminated scanning tunnelling microscope tip. We found that the presence of the Cl anion at the tip apex may either enhance or suppress the concerted tunnelling process, depending on the details of the coupling symmetry between the Cl ion and the protons. Our work opens up the possibility of controlling the quantum states of protons with atomic-scale precision.

At a glance

Figures

First | 1-4 of 4 | Last
left
  1. Chirality switching of a H2O tetramer.
    Figure 1: Chirality switching of a H2O tetramer.

    a, Schematic showing manipulation of the chirality of the tetramer by a Cl-terminated tip. Left: the tetramer stays in the clockwise state (CS) when the tip is far away from the tetramer (gap set with V = 5 mV and I = 5 pA). Middle: reducing the tip height by 230 pm leads to chirality switching. Right: lifting the tip back to the initial height leaves the tetramer in the anticlockwise state (AS). b, Tunnelling current trace recorded during the chirality manipulation shown in a. Two current levels can be clearly distinguished in the range 300–400 pA, where the low and high current levels correspond to CS and AS, respectively. Left and right insets: Adsorption configuration (upper) and STM images (lower) of CS and AS tetramers, respectively. Parameters for the STM images: V = 20 mV and I = 150 pA. The green stars in the STM images denote the tip position where the current trace is acquired. O, H, Au, Cl− and Na+ are denoted by red, white, golden, cyan and blue spheres, respectively.

  2. Quantitative analysis of the switching rate.
    Figure 2: Quantitative analysis of the switching rate.

    a, Switching rate and tunnelling current as functions of the sample bias. The tip height is fixed at −295 pm. b, Dependence of the switching rate on temperature. Tip height: −260 pm, sample bias: 5 mV. In a and b the statistical error is smaller than the data markers; the average of the switching rates for different bias and temperature is denoted by horizontal dashed lines, showing the negligible dependence on those factors. c, Dependence of the switching rate on tip height. Sample bias: 5 mV. The switching rates are sensitive to the tip height, exhibiting an initial rise (region I) followed by a rapid drop (region II) with decreasing tip height. The error bar represents the standard error. The tip height is referenced to the gap set with V = 5 mV and I = 5 pA.

  3. Effect of the tip on the reaction barrier for proton transfer.

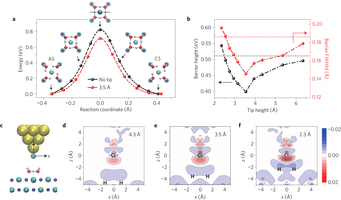

    Figure 3: Effect of the tip on the reaction barrier for proton transfer.

    a, Reaction barrier for interconversion between CS and AS of the tetramer without (black) and with a Cl-terminated tip at a height of 3.5 Å (red), calculated using the cNEB method. Insets show snapshots along the transition path. b, Plots of the effective barrier height and full-width at half-maximum (FWHM) as a function of tip height. The tip height is defined as the distance between the Cl atom on the tip and the centroid of four oxygen atoms of the water tetramer. The horizontal black and red dashed lines denote the barrier height and width without the tip, respectively. c, Atomic model of the Cl–tip/tetramer/NaCl-bilayer system. The origins of x and z axis are set at the Cl atom on the tip. d–f, Two-dimensional slices of the electron density difference when a Cl tip is placed above the tetramer at 4.3 Å (d), 3.5 Å (e) and 2.3 Å (f). The electron density difference is plotted in a plane perpendicular to the surface, which is marked by a dotted line in the uppermost snapshot of a. Red and blue in the colour bar represent electron gain and depletion, respectively. The units of electron density are e Å−3.

  4. Dependence of the switching rates on the lateral position of the tip.
    Figure 4: Dependence of the switching rates on the lateral position of the tip.

    a, Switching rates as a function of tip position obtained by moving the tip along the 0° direction away from the centre of the tetramer. b, Same as a but along the 45° direction. The green arrows in the insets denote the movement directions of the tip. The zero point of the tip position is set about 0.1 Å away from the centre of the tetramer. The error bars represent the standard error. Sample bias: 5 mV. Tip height: −265 pm referenced to the gap set with V = 5 mV and I = 5 pA.

right

References

  1. Kreuer, K. D. Proton conductivity: Materials and applications. Chem. Mater. 8, 610–641 (1996).
  2. Benoit, M., Marx, D. & Parrinello, M. Tunnelling and zero-point motion in high-pressure ice. Nature 392, 258–261 (1998).
  3. Horiuchi, S. et al. Above-room-temperature ferroelectricity in a single-component molecular crystal. Nature 463, 789–793 (2010).
  4. Frank, R. A. W. et al. A molecular switch and proton wire synchronize the active sites in thiamine enzymes. Science 306, 872–876 (2004).
  5. Masgrau, L. et al. Atomic description of an enzyme reaction dominated by proton tunneling. Science 312, 237–241 (2006).
  6. Brougham, D. F., Caciuffo, R. & Horsewill, A. J. Coordinated proton tunneling in a cyclic network of four hydrogen bonds in the solid state. Nature 397, 241–243 (1999).
  7. Bove, L. E., Klotz, S., Paciaroni, A. & Sacchetti, F. Anomalous proton dynamics in ice at low temperature. Phys. Rev. Lett. 103, 165901 (2009).
  8. Lin, L., Morrone, J. A. & Car, R. Correlated tunneling in hydrogen bonds. J. Stat. Phys. 145, 365–384 (2011).
  9. Drechsel-Grau, C. & Marx, D. Quantum simulation of collective proton tunneling in hexagonal ice crystals. Phys. Rev. Lett. 112, 148302 (2014).
  10. Gilli, G. & Gilli, P. The Nature of the Hydrogen Bond (Oxford Univ. Press, 2009).
  11. Garczarek, F. & Gerwert, K. Functional waters in intraprotein proton transfer monitored by FTIR difference spectroscopy. Nature 439, 109–112 (2006).
  12. Liljeroth, P., Repp, J. & Meyer, G. Current-induced hydrogen tautomerization and conductance switching of naphthalocyanine molecules. Science 317, 1203–1206 (2007).
  13. Kumagai, T. et al. H-atom relay reactions in real space. Nature Mater. 11, 167–172 (2012).
  14. Merte, L. R. et al. Water-mediated proton hopping on an iron oxide surface. Science 336, 889–893 (2012).
  15. Auwärter, W. et al. A surface-anchored molecular four-level conductance switch based on single proton transfer. Nature Nanotech. 7, 41–46 (2012).
  16. Kumagai, T. et al. Controlling intramolecular hydrogen transfer in a porphycene molecule with single atoms or molecules located nearby. Nature Chem. 6, 41–46 (2013).
  17. Lawton, T. J. et al. Visualization of hydrogen bonding and associated chirality in methanol hexamers. Phys. Rev. Lett. 107, 256101 (2011).
  18. Zhang, J. et al. Real-space identification of intermolecular bonding with atomic force microscopy. Science 342, 611–614 (2013).
  19. Chiang, C. L. et al. Real-space imaging of molecular structure and chemical bonding by single-molecule inelastic tunneling probe. Science 344, 855–888 (2014).
  20. Guo, J. et al. Real-space imaging of interfacial water with submolecular resolution. Nature Mater. 13, 184–189 (2014).
  21. Ho, W. Single-molecule chemistry. J. Chem. Phys. 117, 11033–11061 (2002).
  22. Gawronski, H. et al. Manipulation and control of hydrogen bond dynamics in absorbed ice nanoclusters. Phys. Rev. Lett. 101, 136102 (2008).
  23. Lauhon, L. J. & Ho, W. Direct observation of the quantum tunneling of single hydrogen atoms with a scanning tunneling microscope. Phys. Rev. Lett. 85, 4566–4569 (2000).
  24. Leggett, A. J. et al. Dynamics of the dissipative two-state system. Rev. Mod. Phys. 59, 1–85 (1987).
  25. Horsewill, A. J. Quantum tunnelling in the hydrogen bond. Prog. Nucl. Magn. Reson. Spectrosc. 52, 170–196 (2008).
  26. Drechsel-Grau, C. & Marx, D. Exceptional isotopic-substitution effect: Breakdown of collective proton tunneling in hexagonal ice due to partial deuteration. Angew. Chem. 126, 11117–11120 (2014).
  27. Ding, Y., Hassanali, A. A. & Parrinello, M. Anomalous water diffusion in salt solutions. Proc. Natl Acad. Sci. USA 111, 3310–3315 (2014).
  28. Kresse, G. & Hafner, J. Ab initio molecular dynamics for liquid metals. Phys. Rev. B 47, 558–561 (1993).
  29. Kresse, G. & Joubert, D. From ultrasoft pseudopotentials to the projector augmented-wave method. Phys. Rev. B 59, 1758–1775 (1999).
  30. Klimeš, J., Bowler, D. R. & Michaelides, A. Van der Waals density functionals applied to solids. Phys. Rev. B 83, 195131 (2011).
  31. Henkelman, G., Uberuaga, B. P. & Jónsson, H. A climbing image nudged elastic band method for finding saddle points and minimum energy paths. J. Chem. Phys. 113, 9901–9904 (2000).
